Code Practice Oscillator

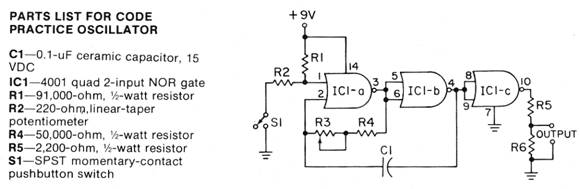

Boning up for your Amateur code exam? Pushbutton S1 makes a very inexpensive Morse code key. The tone out of the circuit at point A, can drive an amplifier or a pair of high-impedance headphones.











Copyright by Bill Bytheway, K7TTY February 2012
